The EX30 Series

Clark Cooper Valve EX30 Photo

Features:

The EX30 is a direct operated, reduced port solenoid valve intended for inlet pressures of up to 15,000 psi with low flow rates.  It will operate with a wide range of media, ranging from light oils to gases.  There is no minimum required differential pressure.  The EX30 is currently available in the normally closed (fail close) configuration only.  The valve should be mounted vertically with the coil on top to allow opening at maximum allowable pressure. Filters are recommended for all applications due to the small orifice.

Possible Media: (click each icon to learn more)

Clark Cooper EX30 Valve General Gases and Liquids Yes
General Gases
and Liquids
Clark Cooper EX30 Valve Light Oils Yes
Hydrocarbon
Fuels
Clark Cooper EX30 Valve Flammable Gases Yes
Flammable
Gases
Clark Cooper EX30 Valve Hydrogen Yes
Hydrogen
Clark Cooper EX30 Valve Oxygen Yes
Oxygen
Clark Cooper EX30 Valve Corrosives No
Corrosives
Clark Cooper EX30 Valve Sea and Salt Water No
Sea & Salt
Water
Clark Cooper EX30 Valve Viscous Liquids No
Viscous
Liquids
Clark Cooper EX30 Valve Steam Yes
Steam
Clark Cooper EX30 Valve Cryogenics Yes
Cryogenics

The EX30 has the following certification:
Clark Cooper EX30 CRN Clark Cooper ATEX Coils

The EX30 Series

Construction

Valve Body: 316 SS
O-Ring: PTFE
Bonnet: 316 SS & 430 SS
Disk: PTFE
Spring: 302 SS
Plunger: 430 SS
Bonnet Retainer: 430 SS


Valve weight: 2.9 lbs

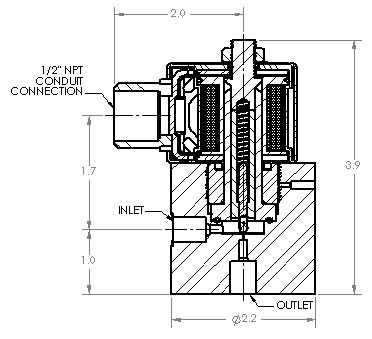

Clark Cooper Valve EX30 Normally Closed

The EX30 Series

Electrical (Coil) - DC Only

Power: 22 Watts (DC only)
Duty: Continuous
Electrical Connection: 1/2" NPT, 18" Leads
Enclosure
Explosion Proof (Standard): NEMA 3, 3S, 4, 4X, 7, 9
General Service: NEMA 1, 2, 3, 3S, 4, 4X

Pressure

Maximum pressures shown are measured in PSIG


  Orifice Size
0.019 "
Normally Closed DC Voltage: 15,000
Cv: 0.005

* The standard Inlet and Outlet connection is for a  ¼” OD Medium Pressure Fitting (7/16”-18 Thread)

The EX30 Series

Possible EX30 Options:
Click each icon to learn more

Clark Cooper EX30 Valve 72 Lead Length yes
72" Lead Length
Clark Cooper EX30 Valve Din Connector yes
Din Connector
Clark Cooper EX30 Valve Screw Terminal yes
Screw Terminal
Clark Cooper EX30 Valve General Service yes
General Service
Clark Cooper EX30 Valve Hydrogen Service yes
Hydrogen Service
Clark Cooper EX30 Valve Oxygen Clean yes
Oxygen Clean
Clark Cooper EX30 Valve Class V Testing yes
Class V Leakage Testing
Clark Cooper EX30 Valve NEMA 4X yes
NEMA 4X
Clark Cooper EX30 Valve Stainless Steel Tags yes
Stainless Steel Tags
Clark Cooper EX30 Valve Viton O-Rings yes
Viton O-Rings
(for >225°F)

The following are standard on the EX30:

Clark Cooper EX30 Valve Explosion Proof yes
Explosion Proof
Clark Cooper EX30 Valve Stainless Steel Valve Body yes
Stainless Steel Valve Body
Clark Cooper EX30 Valve Higher Pressure yes
22 W Coil

Options for our other valves include:

Clark Cooper EX30 Valve ETL Listed no
ETL Listed
Clark Cooper EX30 Valve Integrated Check Valve no
Integrated Check Valve
Clark Cooper EX30 Valve Single Switch no
Single Switch
Clark Cooper EX30 Valve 1/4 Spade tab yes
¼ Tab (spade)
Clark Cooper EX30 Valve Tube Connector yes
Tube Connector
Clark Cooper EX30 Valve SAE Port yes
SAE Port
Clark Cooper EX30 Valve Universal Mount yes
Universal Mount
Clark Cooper EX30 Valve Cryogenic Testing no
Cryogenic Cleaning

The EX30 Series

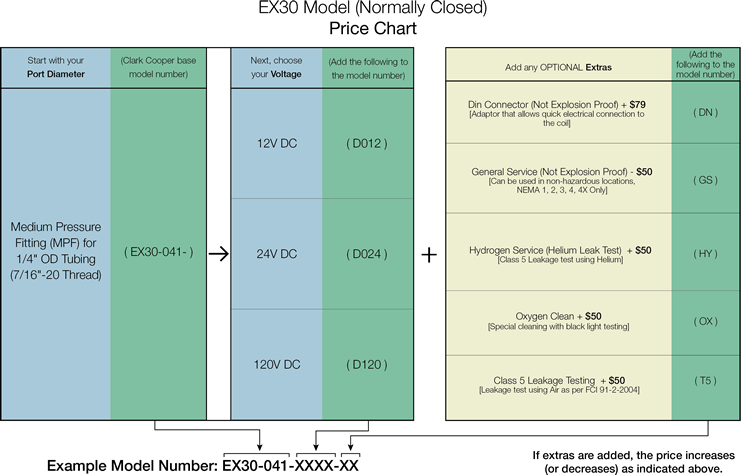

Clark Cooper Valve EX30 Price Sheet
Download Price Sheet PDF here

Standard delivery time: 10 weeks
Additional options or alternate materials may cause longer delivery times. Delivery time is for less than 5 valves.
