The EH30 Series

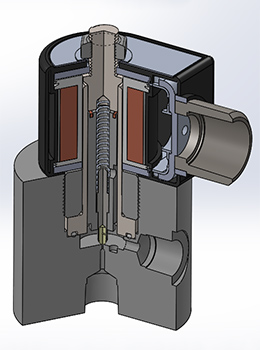

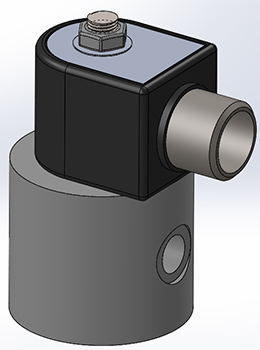

High Pressure Solenoid Valve - EH30 Series High Pressure Solenoid Valve - EH30 Section Rendering High Pressure Solenoid Valve - EH30 Rendering

Features:

The EH30 is a 2-way, unidirectional reduced port solenoid valve that is great for a wide range of fluids and gases. This direct acting valve offers a solution to a variety of applications to control the flow of high pressure air, water, hydrogen, nitrogen and other gases or light liquids compatible with materials of construction. Suitable for cryogenic applications, this low flow, high pressure valve packages great versatility in a compact design for pressures of zero to 10,000 PSIG. No minimum pressure is required for opening, and it will not “burp” due to any rapid spikes in inlet pressure. Both the Normally Closed and Normally Open versions can be universally mounted, as a standard. They both may be mounted in any orientation. Filters are recommended for all applications.

Possible Media: (click each icon to learn more)

EH30 Valve – Applicable For General Gases & Liquids
General Gases
and Liquids
EH30 Valve for Hydrocarbon Fuels
Hydrocarbon
Fuels
EH30 Valve for Flammable Gases
Flammable
Gases
EH30 Valve for Hydrogen
Hydrogen
EH30 Valve for Oxygen
Oxygen
EH30 Series Valve Not for Corrosives
Corrosives
EH30 Series Valve Not for Sea & Salt Water
Sea & Salt
Water
EH30 Valve Not for Viscous Liquids
Viscous
Liquids
EH30 Valve for Steam
Steam
EH30 Valve for Cryogenics
Cryogenics

The EH30 has the following certification:
EH30 Valve CRN Certified Clark Cooper ATEX Coils
EH30 Product Manual
ATEX Approved Coils Now Available

How does this compare to other Clark Cooper Valves?

Download EH30 Catalog Page here

California Proposition 65 Warning


The EH30 Series

Construction

Valve Body: 316 SS
O Ring (Standard): PTFE (cryo to 400°F)
Cartridge: 316 SS & 430 SS
Pilot / Seal: 303 SS / PTFE (cryo to 400°F)
Spring: 302 SS
Plunger: 430 SS
Bonnet Retainer: 430 SS
Fluid Temperature: -423 ° to +400 °F

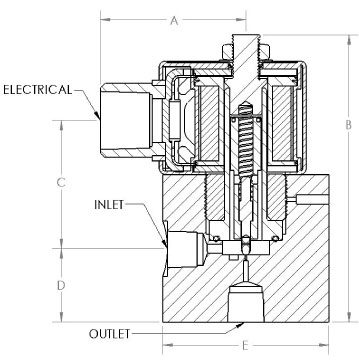

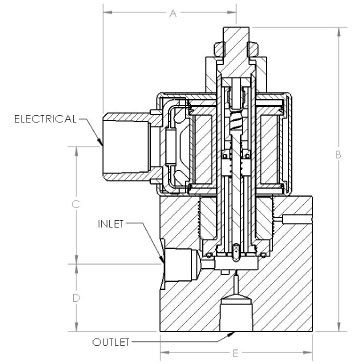

EH30 Valve Construction & Functions Clark Cooper Valve EH30 Normally Open
  Inlet/Outlet Electrical Ship Weight (lbs.) Reference Dimensions (inches)
A B C D E
EH30-04 Normally Closed ¼" NPT ½" NPT Conduit 2.90 2.0 3.9 1.7 1.0 ø 2.20
EH30-04 Normally Open ¼" NPT ½" NPT Conduit 3.15 2.0 4.5 1.7 1.0 ø 2.20

The EH30 Series

Electrical (Coil)

  AC Power DC Power
Wattage 10 22
Voltage 24 120 240 12 24 120
Inrush (RMS amps) 2.6 0.6 0.3 n/a
Holding (RMS amps) 1.2 0.3 0.17 1.8 0.9 0.2
Insulation Class F Class H
Connection 1/2" NPT, 18" Leads
Standard Coil NEMA 3, 3S, 4, 4X, 7, 9; Class I Groups A-D, Temp Class T3A, Class II Group E
General Service Coil NEMA 1, 2, 3, 3S, 4, 4X

* All AC EH30 valves have a 10 watt coil
* All DC EH30 valves have a 22 watt coil

Pressure

Maximum pressures shown are measured in PSIG


  Orifice Size
0.019" 0.032"
Normally Closed AC Voltage: 10,000 10,000
Normally Closed DC Voltage: 10,000 6,300
Normally Open AC Voltage: 7,500 2,800
Normally Open DC Voltage: 4,300 1,800
Cv: 0.005 0.020

* Standard Sealing is Class 2, Per ANSI/FCI 92-2-2001

The EH30 Series

Possible EH30 Options:
Click each icon to learn more

EH30 Valves with Optional 72 inch Lead Length
72" Lead Length
EH30 Valves with an Optional Din Connector
Din Connector
EH30 Valves with an Optional Screw Terminal
Screw Terminal
EH30 Valves with an Optional 1/4 inch Tab (Spade)
¼ Tab (spade)
EH30 Valves with an Optional General Service Coil
General Service
EH30 Valves with an Optional Hydrogen Service Test
Hydrogen Service
EH30 with Normally Open Option
Normally Open
EH30 Valves with Optional Oxygen Cleaning
Oxygen Cleaning
EH30 Valves with an Optional Tube Connector
Tube Connector
EH30 Valves with an Optional Class V Test
Class V Leakage Testing
EH30 with NEMA 4X Option
NEMA 4X
EH30 Valves with Optional Stainless Steel Tags
Stainless Steel Tags
EH30 with Optional Cryogenic Cleaning
Cryogenic Service
EH30 Valve with Optional ATEX Certification
ATEX
EH30 Valve with Optional SAE Port
SAE Port

The following are standard on the EH30:

EH30 with Standard Explosion Proof coil
Explosion Proof
EH30 with standard Stainless Steel Valve Body
Stainless Steel Valve Body
EH30 Valves with Optional Universal Mount
Universal Mount

Options for our other valves include:

Clark Cooper Valves have Optional Cryogenic Testing
Cryogenic Cleaning
Clark Cooper Valves have ETL Listed Option
ETL Listed
Clark Cooper Valves have Higher Pressure Option
22 W Coil
Clark Cooper Valves have Integrated Check Valve Option
Integrated Check Valve
Clark Cooper Valves have Single Switch Options
Single Switch
Clark Cooper Valves have Viton O-Rings Option
Viton O-Rings

The EH30 Series

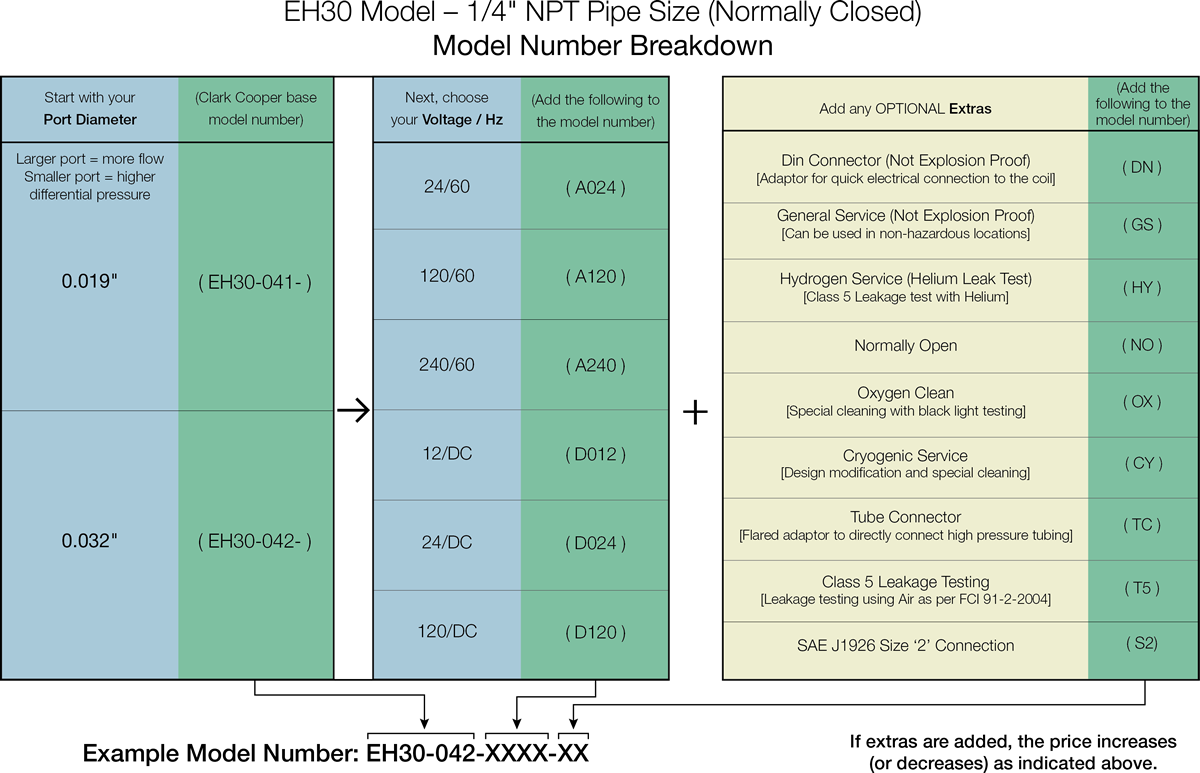

Clark Cooper Valve EH30 Price Sheet
Download Model Breakdown PDF here

Standard delivery time: 1 - 3 days
Additional options or alternate materials may cause longer delivery times. Delivery time is for less than 5 valves.
