Choosing the correct valve for your system can feel surprisingly complicated. With options like 2-way and 3-way valves, it’s easy to get overwhelmed. Making the wrong choice can lead to inefficiency, increased costs, or even system failure. The stakes are high: the wrong valve can cause uneven fluid flow, pressure imbalances, or unnecessary wear on pumps and pipes, resulting in downtime and expensive repairs.
Understanding how each valve type functions—and where it performs best—is critical for maintaining system efficiency, safety, and longevity. Read on to learn whether 2-way or 3-way valves are best for your needs.

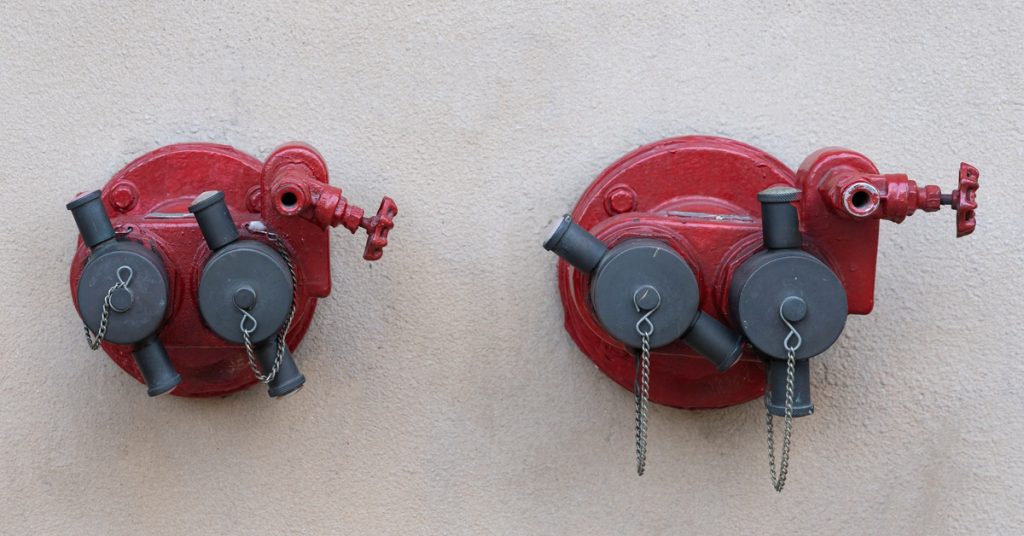

What is a 2-Way Valve?
A 2-way valve, the most common type, has an inlet and an outlet and functions to either permit or block fluid flow through a system. This on/off capability makes it a simple yet effective device for basic flow control.
When you open the valve, fluid passes from the inlet to the outlet without obstruction; however, if you close it, the valve creates a complete seal, stopping the flow entirely. This binary operation is suitable for applications where modulation or redirection of fluid is not required.
The design of a 2-way valve prioritizes simplicity and reliability for its specific function. Its straightforward construction means fewer moving parts, which often translates to lower maintenance needs and a reduced likelihood of mechanical failure. This makes it a dependable choice for many standard control systems.
Applications for 2-Way Valves
Due to their simple on/off function, two-way valves play a crucial role in residential, commercial, and industrial systems. They are the default choice when the only requirement is to start or stop flow, since they are binary devices—either allowing fluid to pass or stopping it completely.
Some typical applications for 2-way valves include:
- Residential Plumbing: Used to shut off water to fixtures like sinks, toilets, and washing machines for maintenance or emergencies.
- HVAC Systems: Control the flow of water or refrigerant in simple heating and cooling units, such as turning a radiator on or off.
- Irrigation Systems: Manage water flow to different zones in a garden or agricultural field to water individualized areas.
- Industrial Processes: Employed in simple process lines to control the flow of chemicals, air, or other fluids where basic on/off control is sufficient.
Pros of 2-Way Valves
Many industries prefer 2-way valves due to their straightforward design. This simplicity translates to cost-effectiveness, as it requires fewer materials and eases manufacturing, thereby lowering both upfront costs and maintenance. Furthermore, their basic design ensures high reliability, making them a dependable choice for critical shut-off applications and basic flow control.

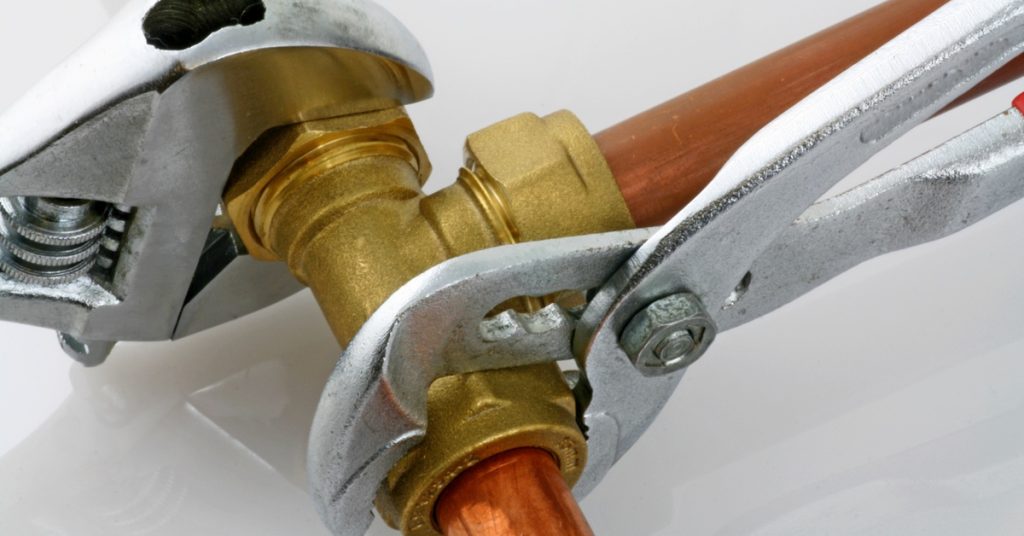

What is a 3-Way Valve?
A 3-way valve features three ports, which allow for more complex control over fluid flow compared to a 2-way valve. Instead of simply starting or stopping flow, a 3-way valve can manage the direction or composition of the fluid.
The internal mechanism of a 3-way valve, often a rotating ball or a movable plug, directs fluid between its three ports in various combinations. Depending on its design and the system’s needs, it can either mix two fluid streams into one or divert a single stream to one of two different outlets. This multifunctional capability allows for sophisticated system design with fewer components.
To facilitate their use in system design, experts categorize these valves based on their primary function: mixing or diverting. Although some valves can perform both functions, manufacturers typically optimize them for one role to ensure maximum efficiency and control.
Applications for 3-Way Valves
The versatility of 3-way valves makes them suitable for a wide range of sophisticated applications where simple on/off control is not enough. Systems commonly use them to precisely regulate temperature, pressure, or the direction of flow. Their ability to mix or divert fluids enables more efficient and compact system designs.
Some common applications for 3-way valves include:
- HVAC Systems: Used in air handling units and hydronic systems to mix hot and cold water for precise temperature control, or to divert flow for zoned heating and cooling.
- Radiant Heating Systems: Blend supply water with cooler return water to maintain a consistent floor temperature, preventing overheating and improving comfort.
- Industrial Processes: Employed in chemical processing and manufacturing to divert fluids to different tanks or reactors, or to mix ingredients in precise ratios.
- Domestic Hot Water Systems: Used as thermostatic mixing valves to blend hot and cold water, ensuring a safe and consistent temperature at faucets and showers.
Pros of 3-Way Valves
A 3-way valve offers versatility by enabling advanced flow control, resulting in efficient and simplified systems. It can mix or divert, replacing multiple 2-way valves, reducing system complexity and costs. Common in HVAC systems, it enhances energy efficiency and precise control. This ensures stability and optimal performance in critical applications, such as radiant heating or chemical processing.
Cons of 3-Way Valves
Despite their versatility, 3-way valves have some drawbacks. Their complex design results in a higher upfront cost compared to two-way valves. Likewise, the installation and maintenance of 3-way valves can also be more complicated, requiring careful setup and regular servicing.
3-way valves also require more precise calibration and system design to function correctly. Improper sizing or incorrect installation can lead to flow imbalances, reduced efficiency, or uneven system performance.
Choosing the Right Valve for Your Needs
Determining whether 2-way or 3-way valves are best for your needs depends on understanding the unique requirements of your system. Consider factors such as flow rate, pressure, and temperature, as well as any specific regulations set by the manufacturer. Consulting with a valve expert can also help ensure you select the right valve for your application.
When To Pick 2-Way Valves
Typically, 2-way valves are more suitable for simple on/off control and are commonly used in heating and cooling systems, as well as basic fluid control applications. They have two ports – an inlet and an outlet – that allow for the regulation of flow between them.
When To Pick 3-Way Valves
On the other hand, 3-way valves offer more versatility, with the ability to divert or mix flow among three ports. This makes them ideal for more complex systems that require multiple flow paths or variable flow rates.
Choosing the correct valve is crucial for optimizing system performance and efficiency. Clark Cooper offers a range of 2- and 3-way marine valves that provide durability and customization to meet the toughest challenges. Explore their solutions to find the perfect fit for your needs.
